Available NOW!
The VERT-X LIVE Universal Live Imaging Mount is EVO Fishing and Marine's versatile forward facing sonar and live imaging transducer mount that can be used in conjunction with any major manufacturer's live imaging forward facing sonar transducer systems. Such as Garmin Livescope, Lowrance Active Target and Humminbird Mega Live.

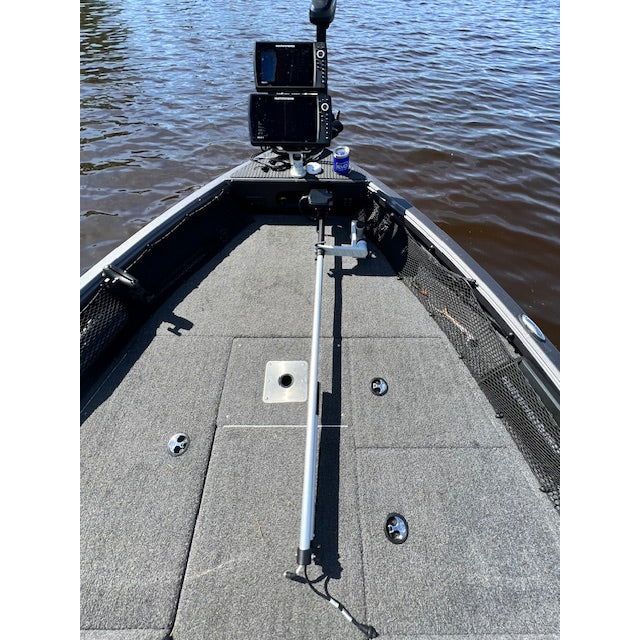

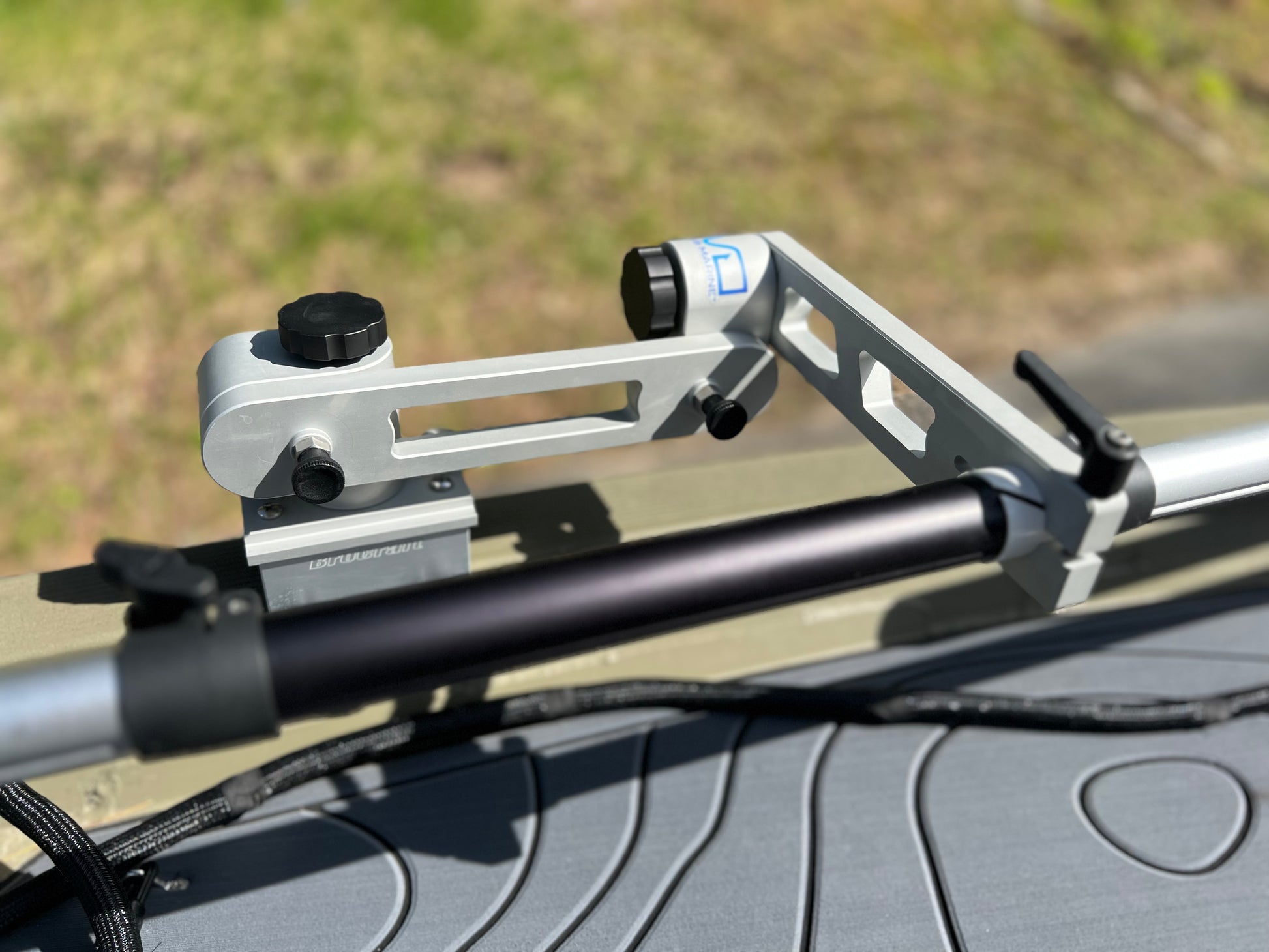

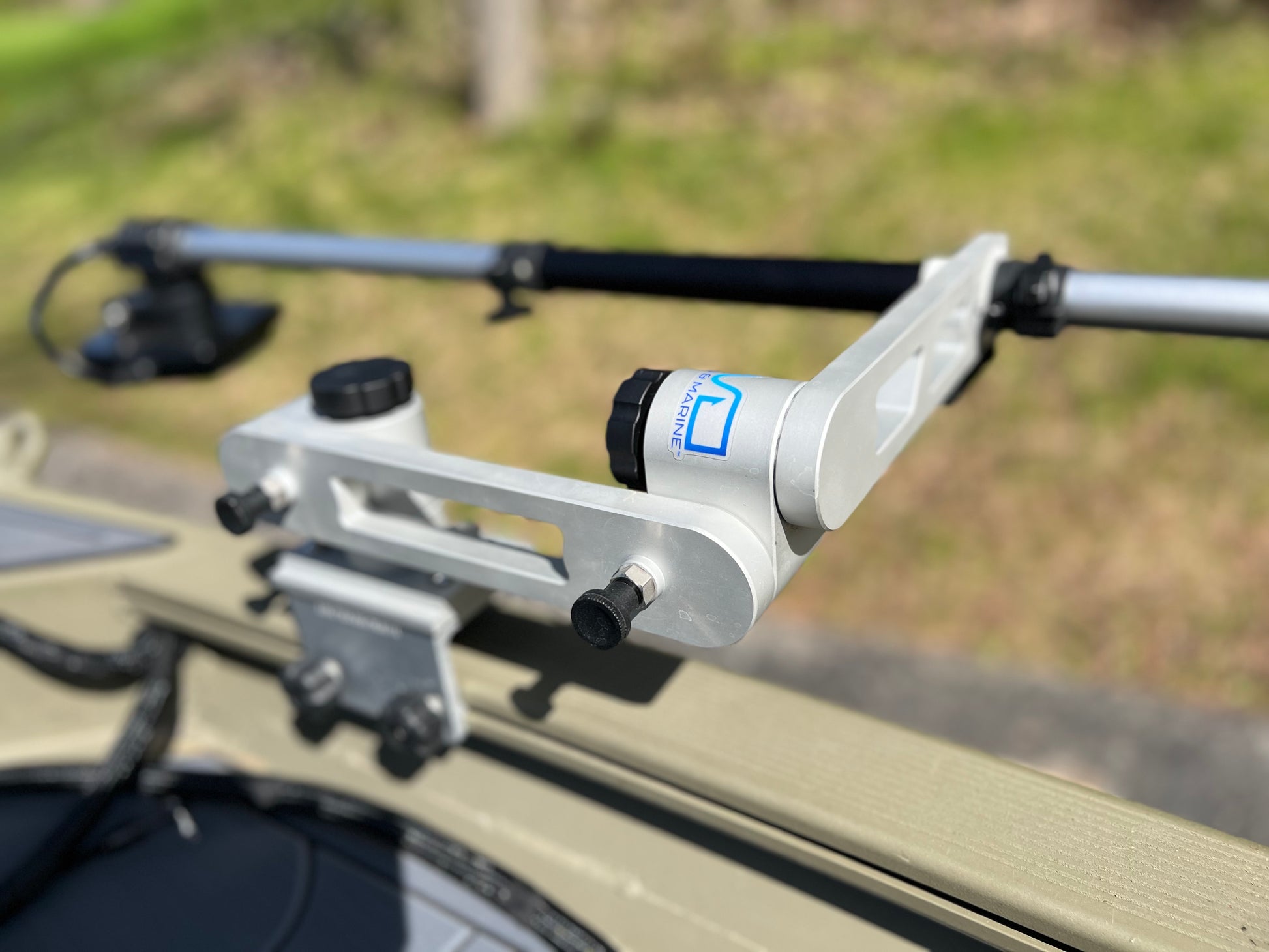

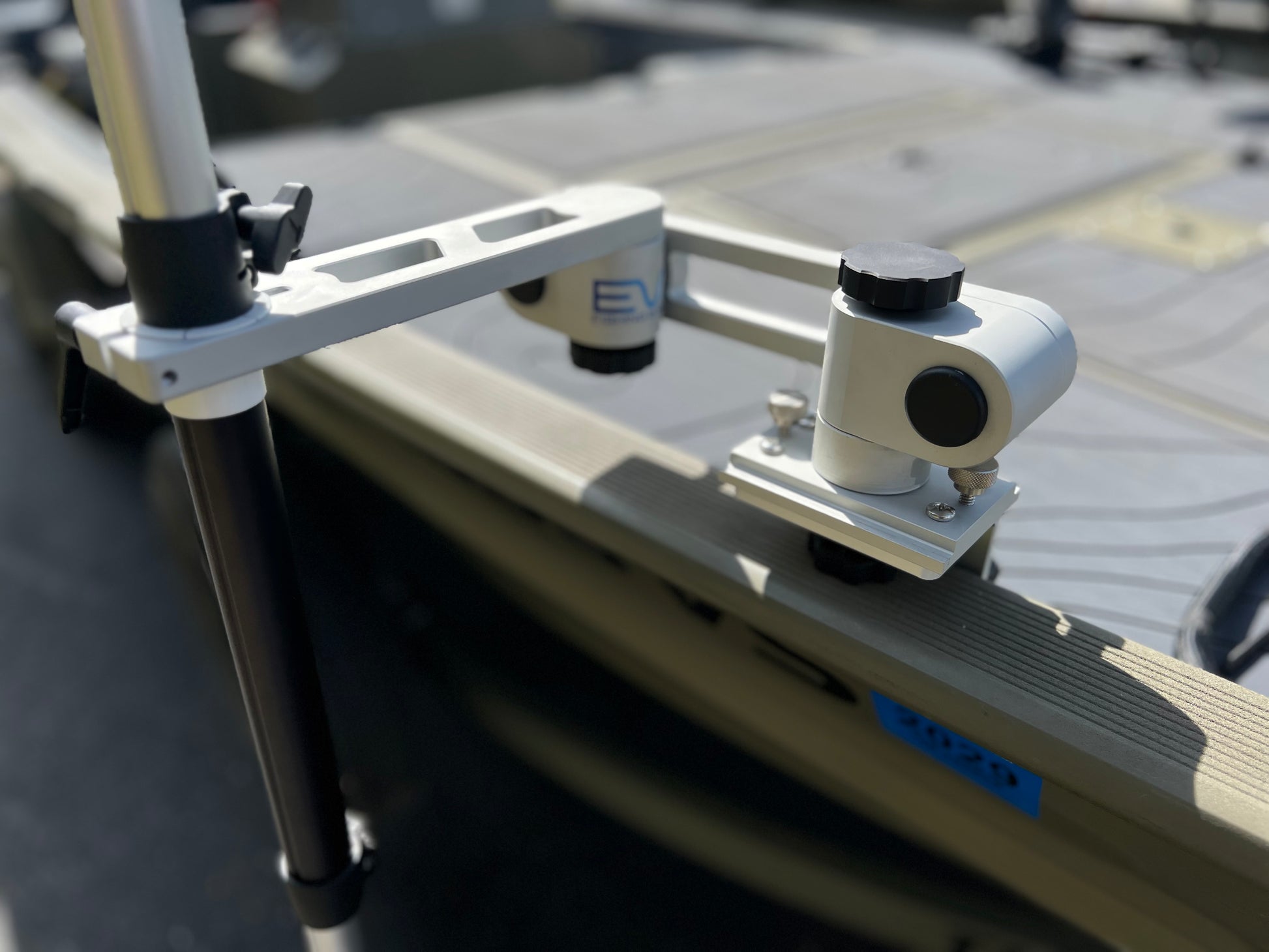

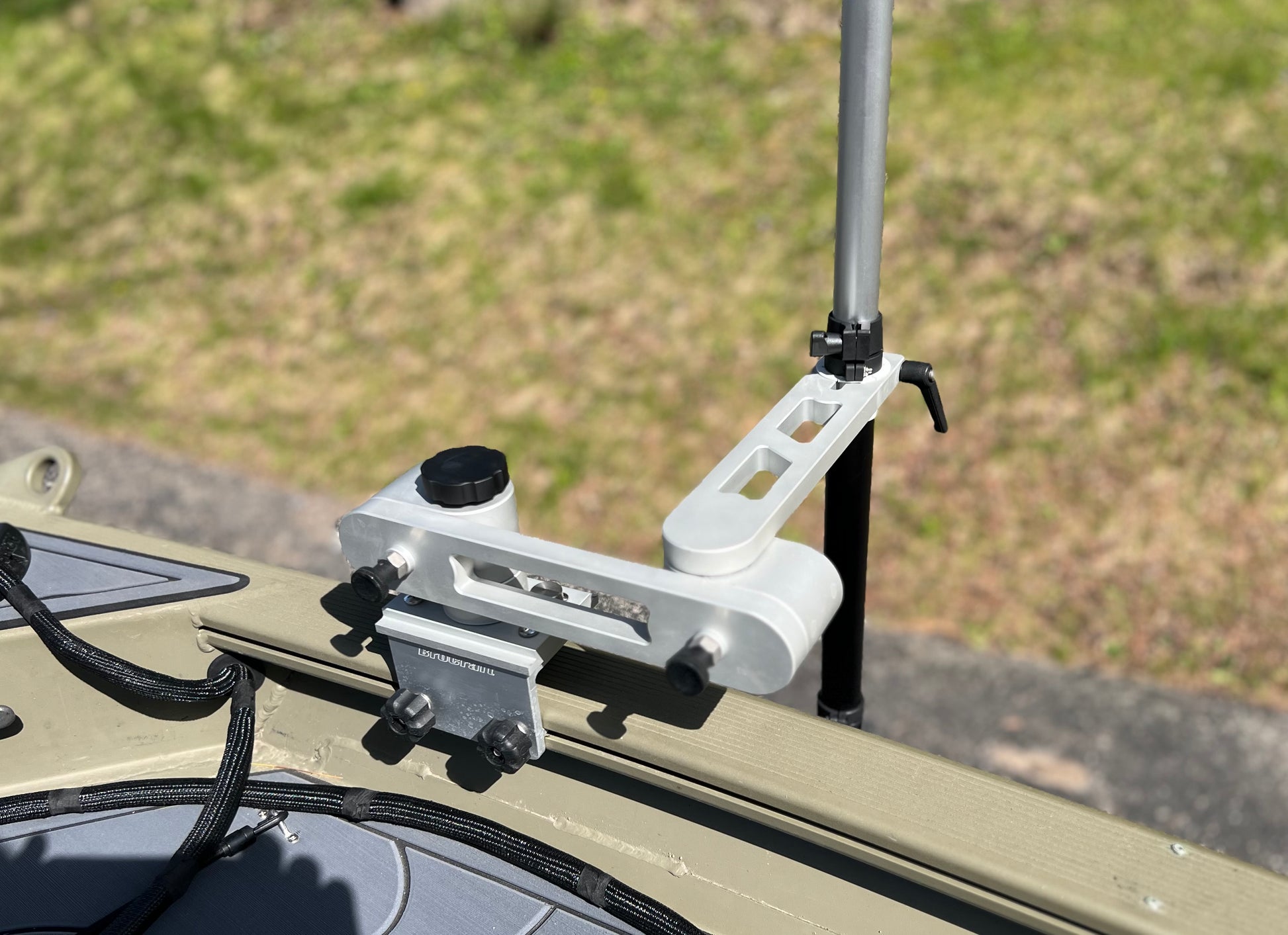

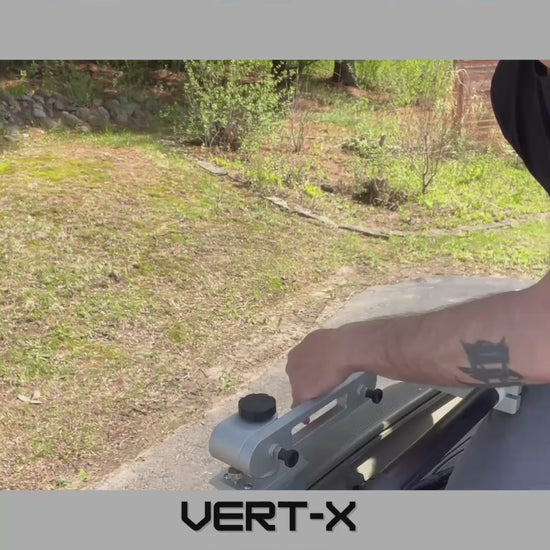

This mount features tool free adjustability with two spring loaded pin adjustment points for easy stow and deploy on the main arm. The other two joints are adjusted by loosening knobs at the pole arm and base pivot points. Once the mount is secured, set the depth and pivot or lock the transducer pole clamp to locate active fish through your live imaging transducer and display unit. The mount allows you to stow the transducer pole parallel to the floor or gunnel of your boat and out of the way when not in use. Easily remove the entire mount minus the base for storage or security by removing one knob without the use of any hand tools.
The mount is available with the 3 Bolt Base Flange which allows mounting to any hard surface. 3 Bolt Base Flange - Mounting hardware included: 3 x 5/16-18 Flat Head Screws / 3 x 5/16 fender washers / 3 x 5/16 locking nuts. Your electronics mount is only as strong as what it's mounted to. With that, we highly recommend that our backing plate be used in conjunction with our 3 bolt base flange. Find the backing plate here: Backing Plate

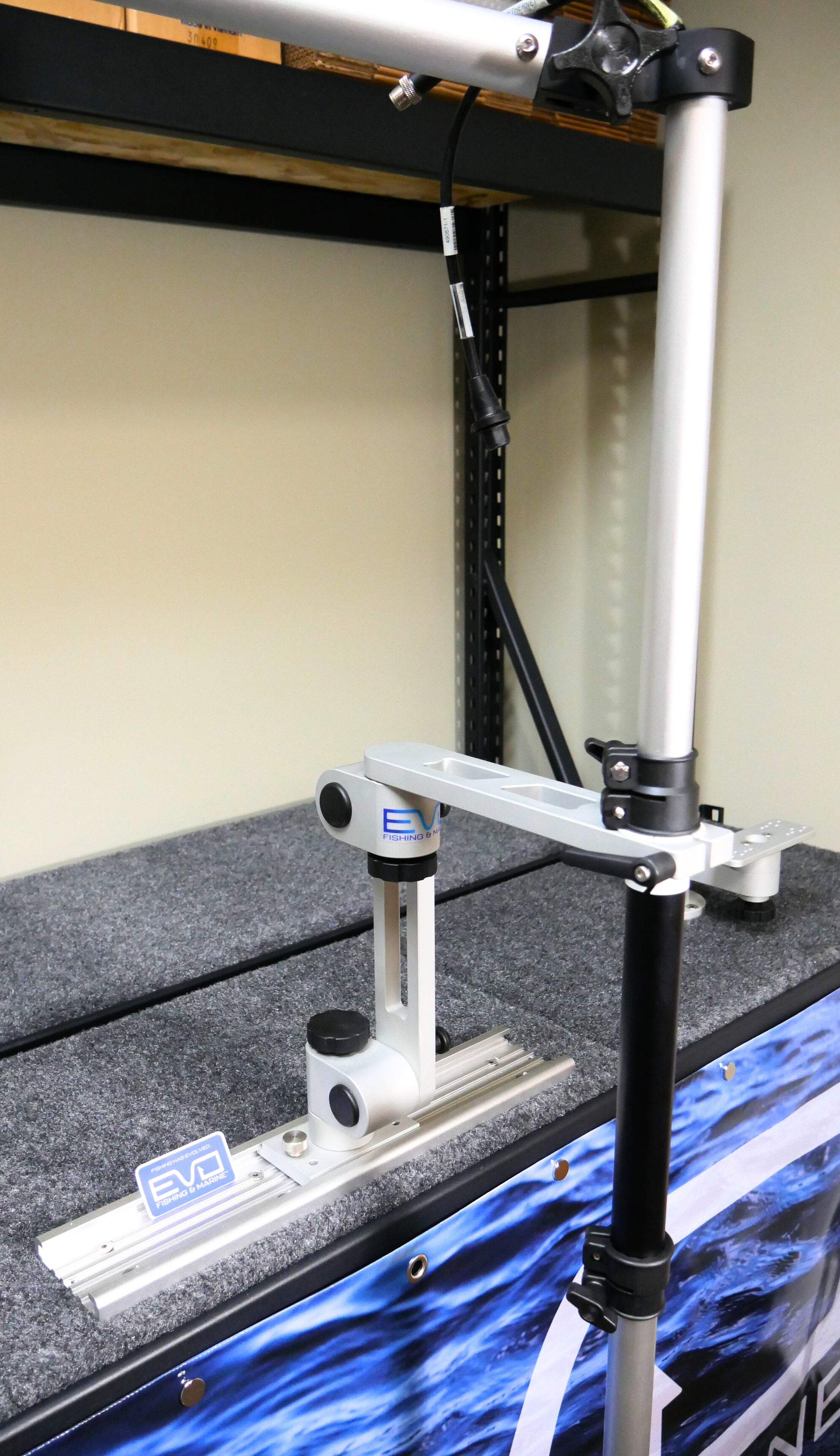

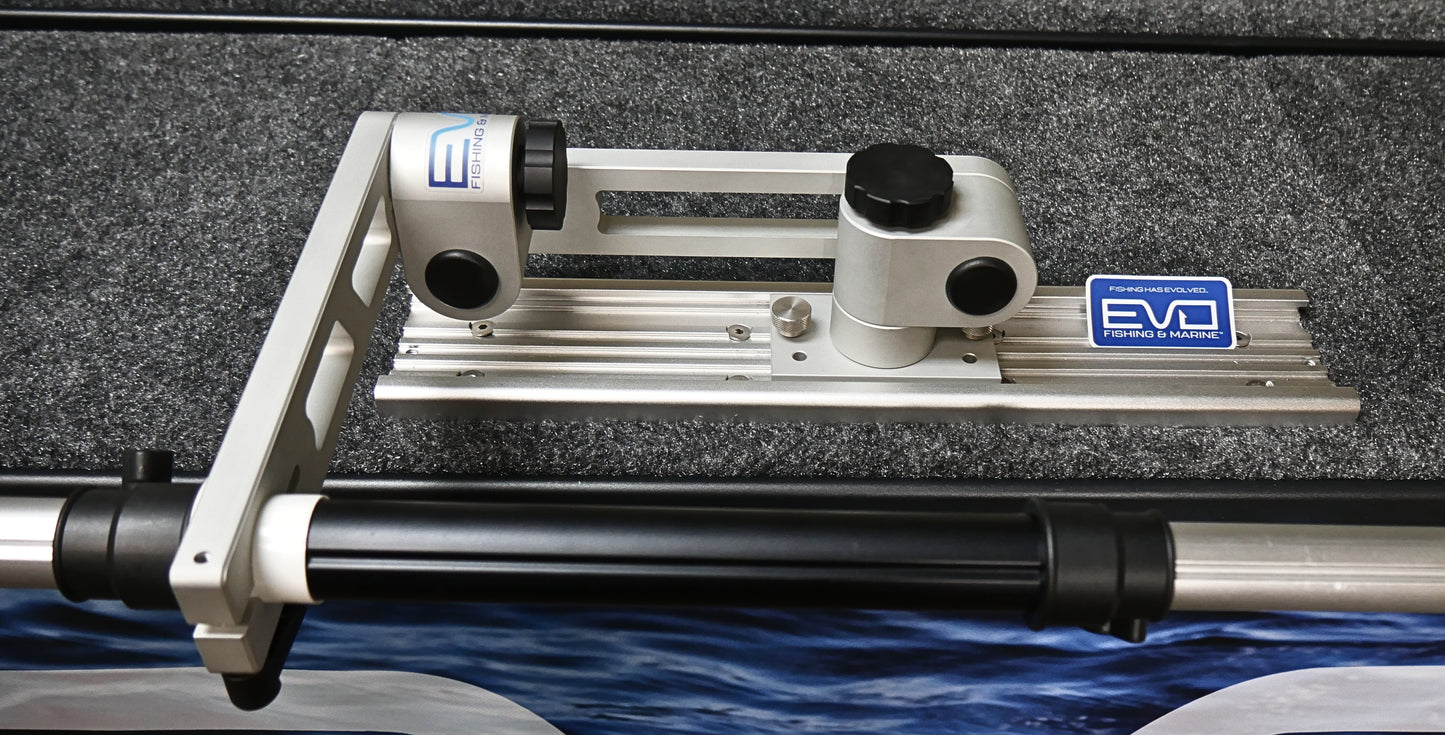

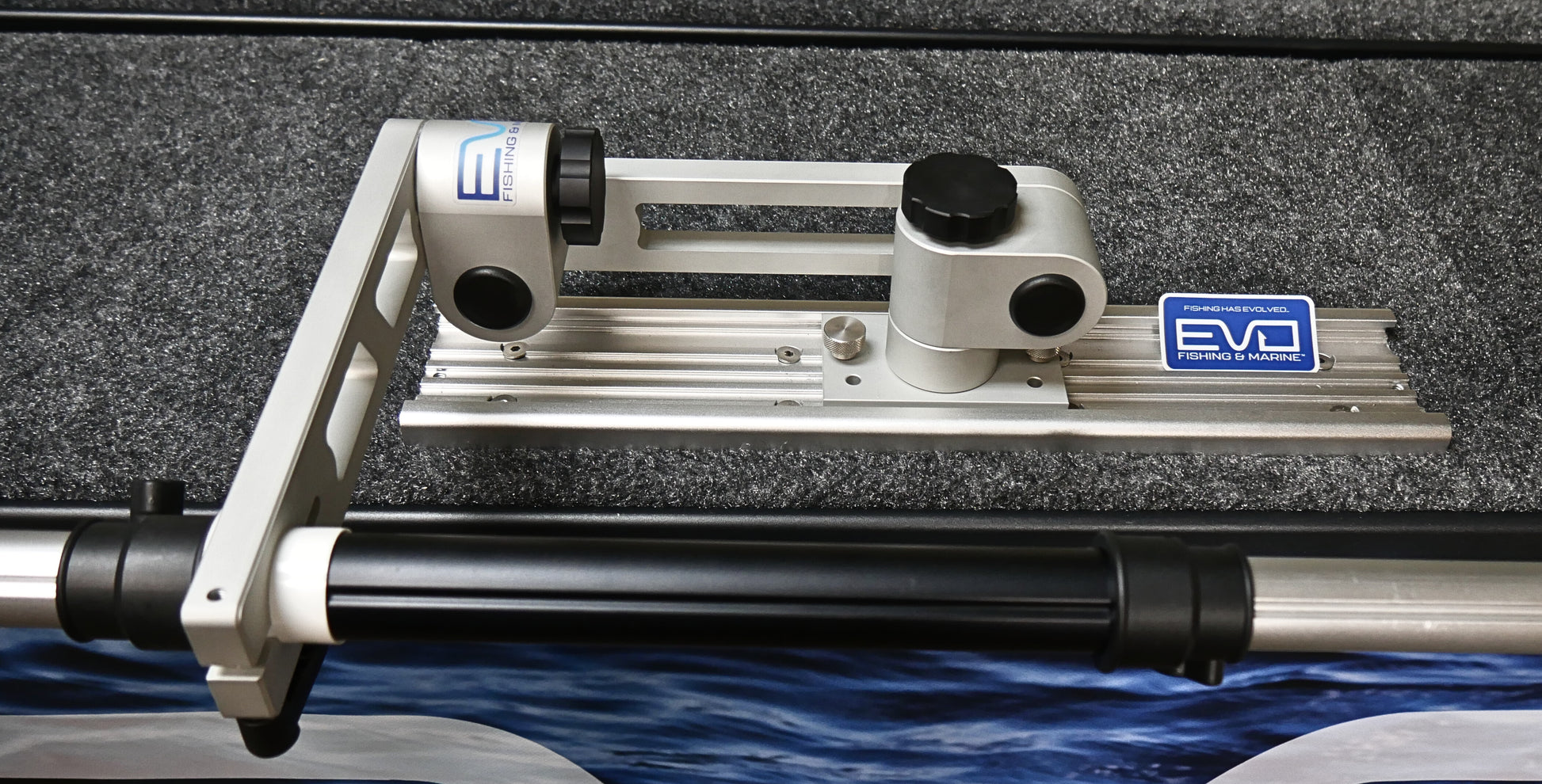

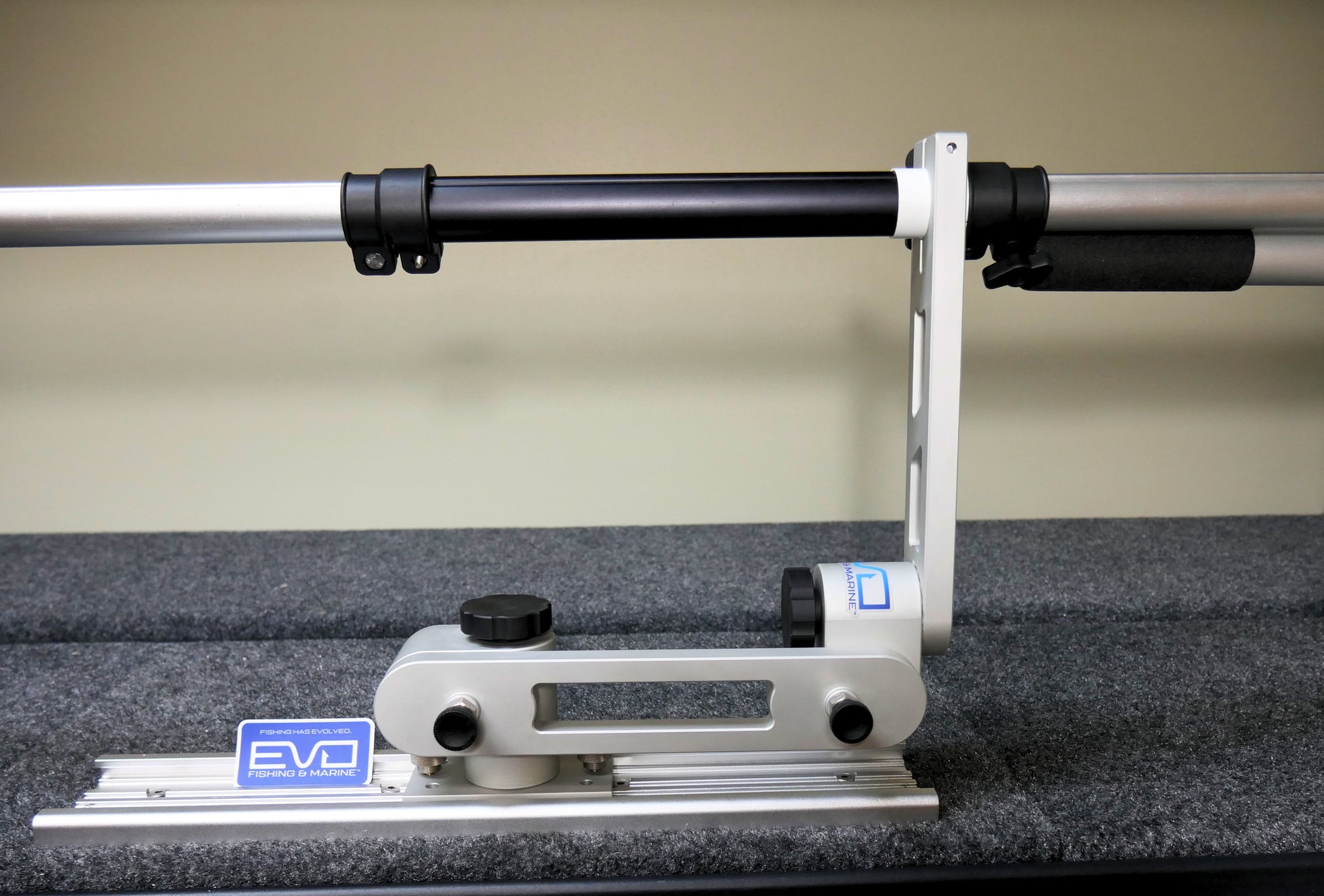

Our optional V2 Track Mount is also available, it allows you to mount the VERT-X Live to any major manufacturers gunnel track system. (Berts / Cisco / Traxtech / Cannon / ETC) The V2 track mount also has a popular 4 bolt pattern pre-drilled, this hole pattern is used by Scotty and other manufacturers that offer gunnel T-Track mounting bases. You can also utilize the 4 pre-drilled holes to mount to any hard surface similar to our 3 Bolt Base Flange. Track Mount - Mounting hardware included - 2 x Thumb Bolts for securing to track
Use the drop down menu to select between the standard 3 bolt base flange or the optional track mount.
Pole options are a 60" fixed pole or a 48-72" telescopic pole. Both come with an 18" handle with padded grip. Select the desired pole type before adding to your cart.

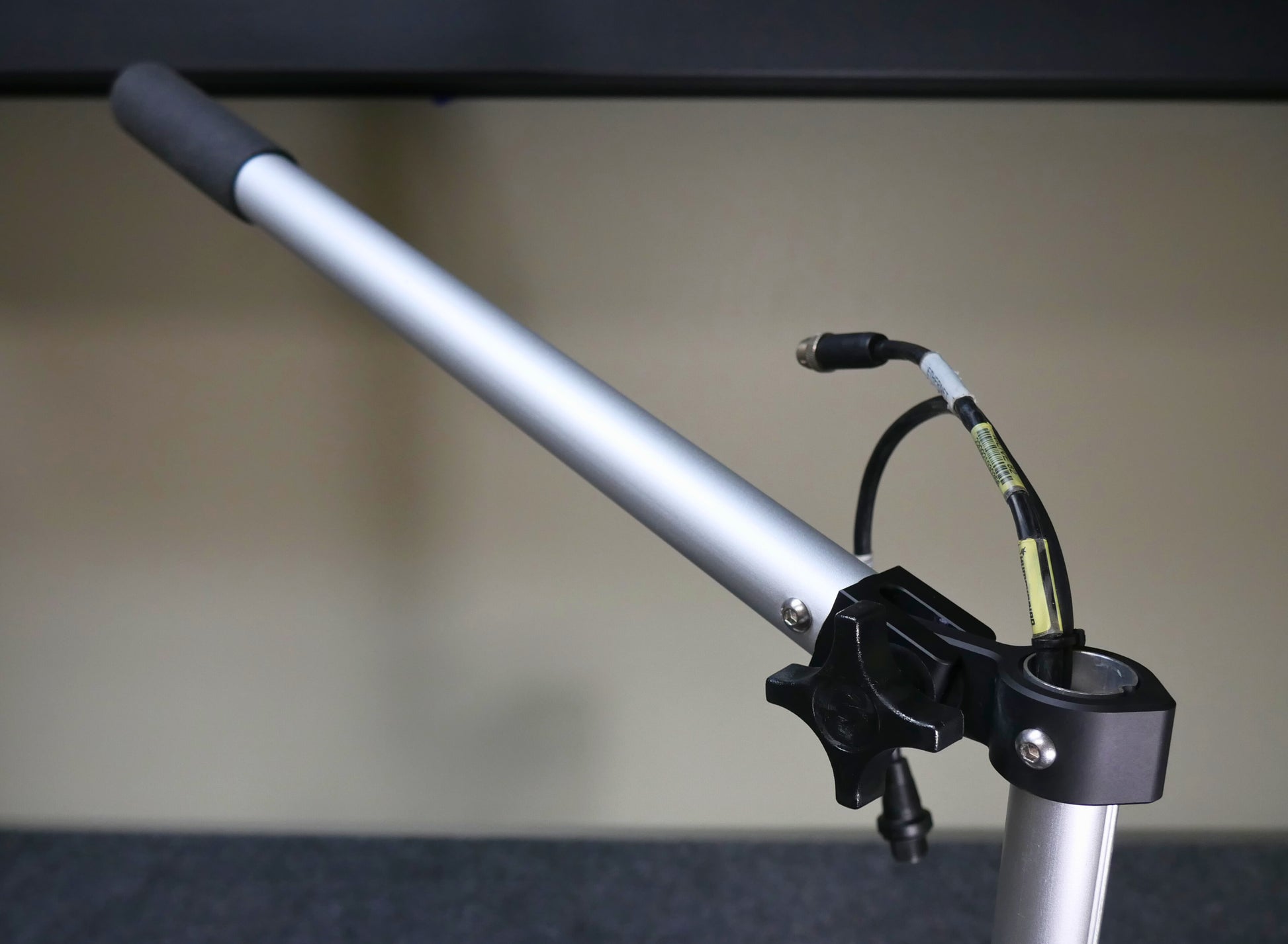

The diameter of the 60" fixed length pole is 1.125" and the lower diameter of the 48"-72" telescopic pole is 1". You must utilize the clamping type transducer mount supplied by the manufacturer and any supplied rubber sleeve to mount your live imaging transducer to the pole. The poles are hollow and allow wires to be passed internally through the top of the pole.
The mount components and pole pivot are CNC Machined from 6061-T6 aluminum, bead blasted for a matte finish and type 2 anodized for a durable, corrosion resistant finish in any marine environment. The poles are made from anodized 6063 extruded aluminum tubing. All hardware is stainless steel for optimal corrosion resistance. 100% Made in the USA.
When stowed and trailering or on long runs, it is advisable to use a secondary support at the end of the transducer pole. We recommend the RAM Mount Claw

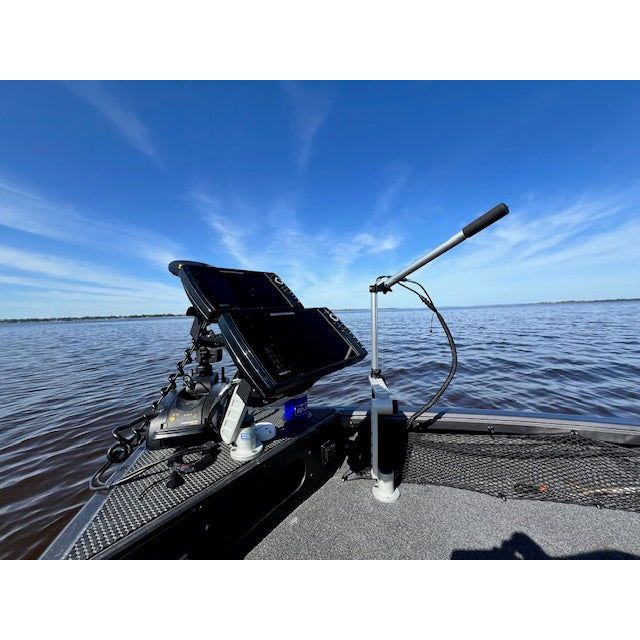

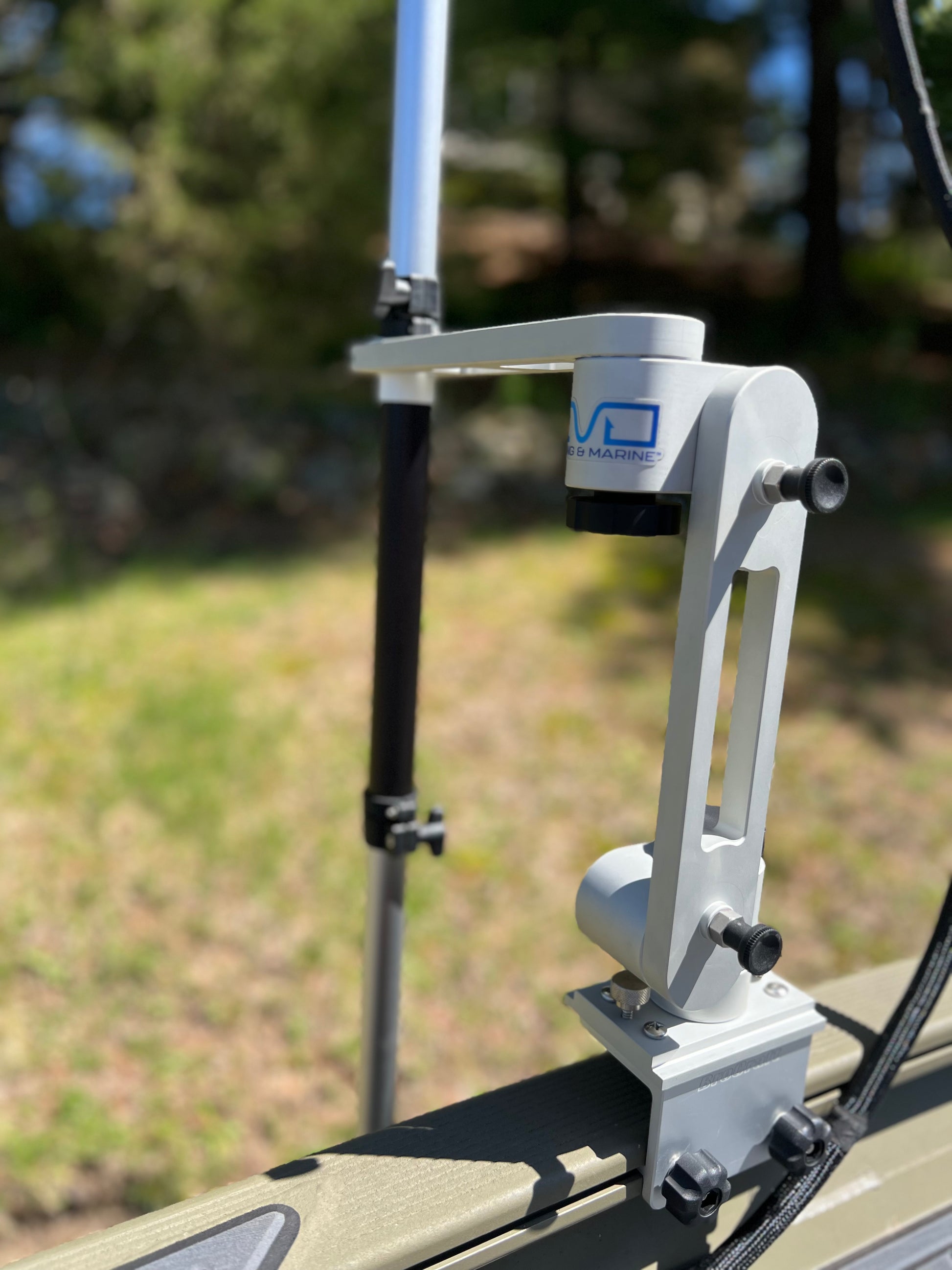

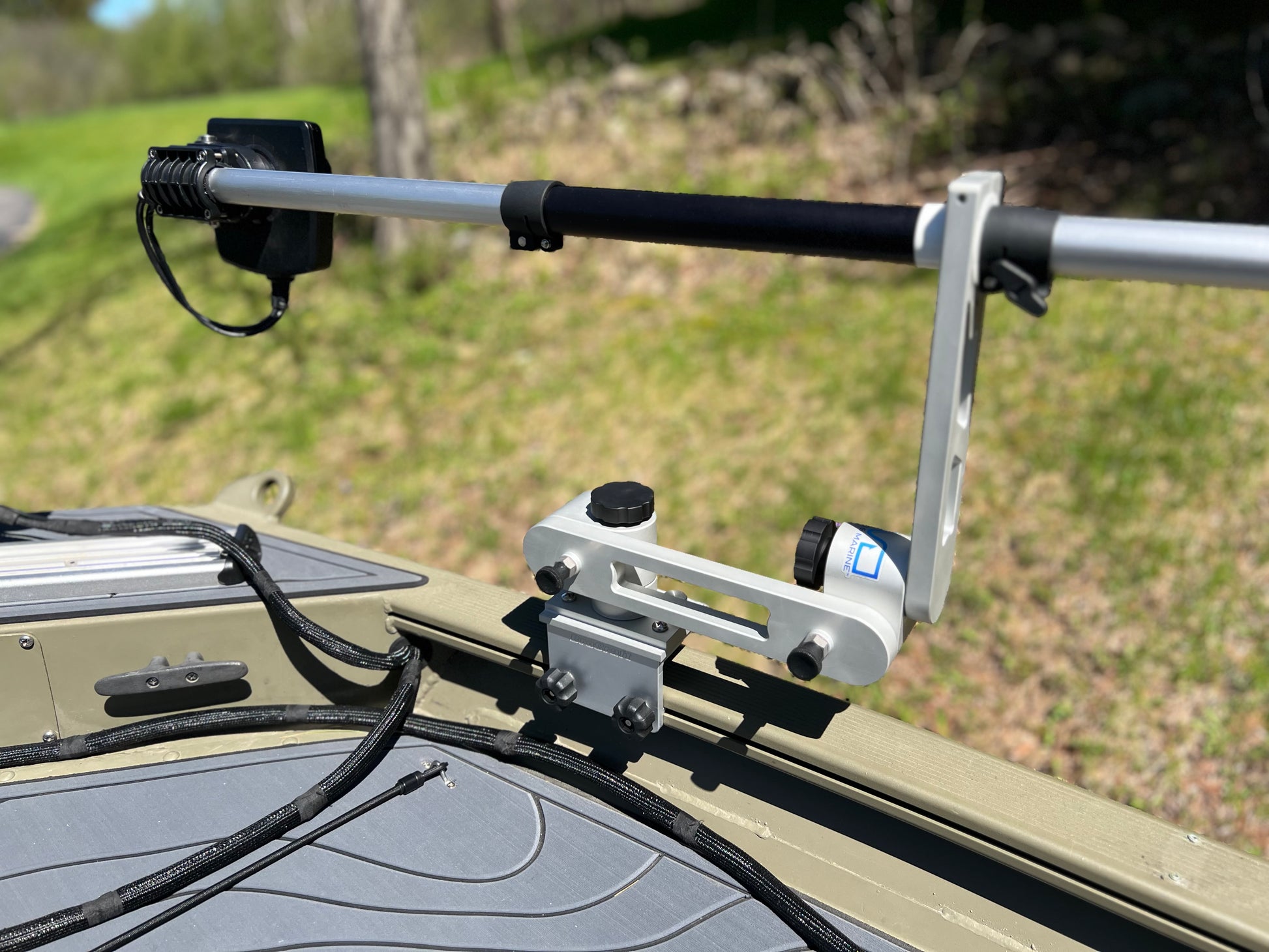

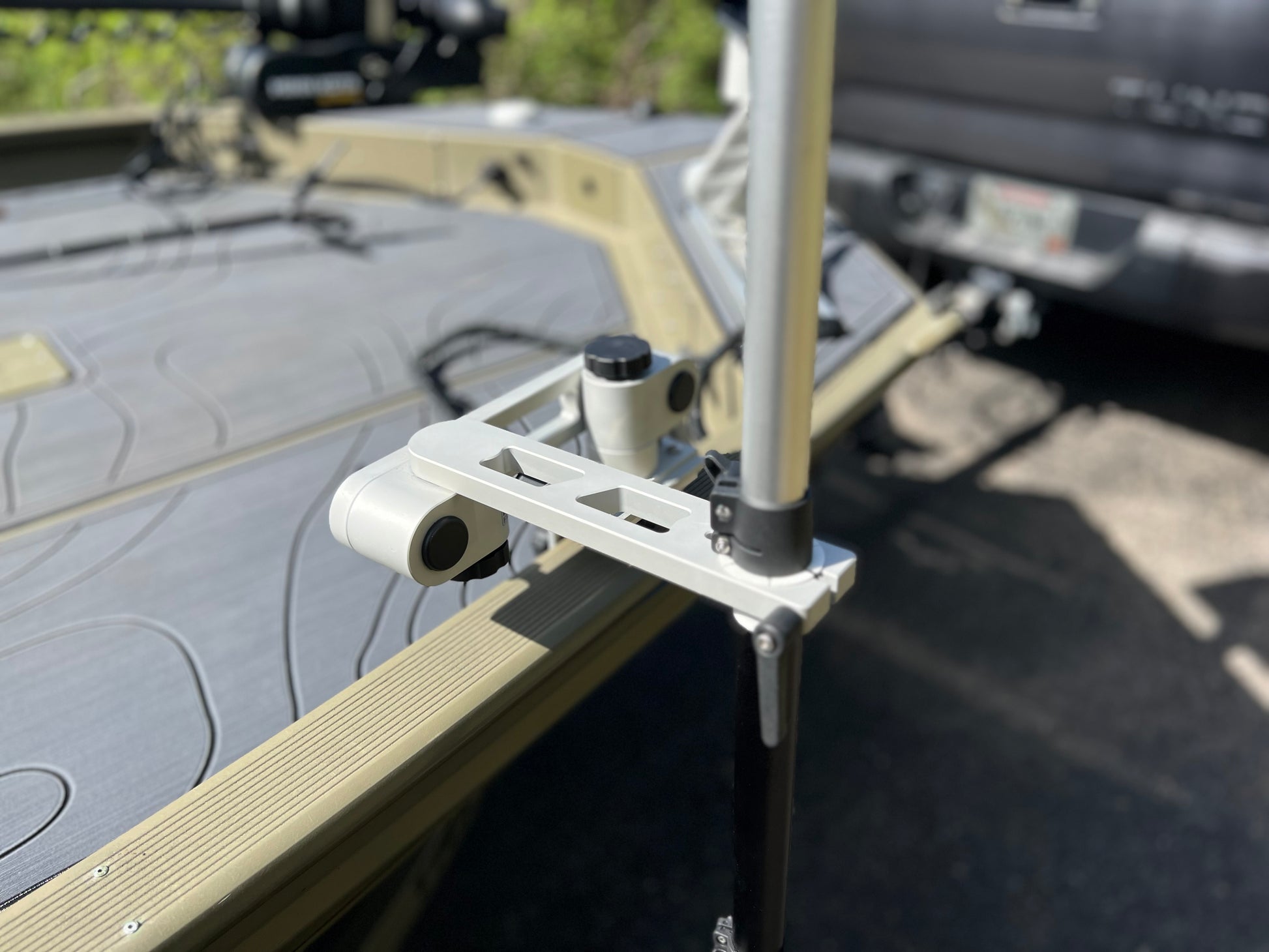

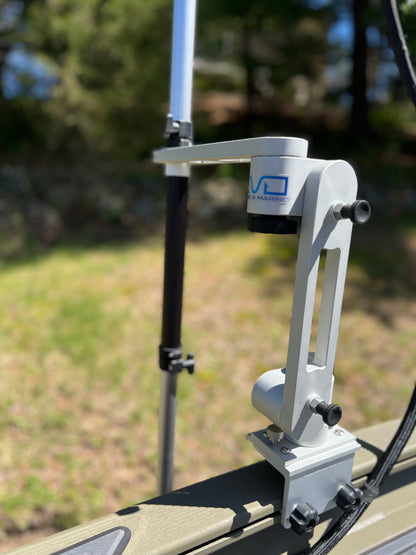

The photos show the VERT-X Live mount with a Humminbird Mega Live system and our VERT-X Mount with Double Up Kit for reference. VERT-X Mount, Double Up Kit and Electronics are not included.
