RAM Mount RAM No-Drill Laptop Mount f/'12-26 Ram 2500 + More [RAM-VB-178A-SW3]

RAM® No-Drill™ Laptop Mount for '12-26 Ram 2500 + More

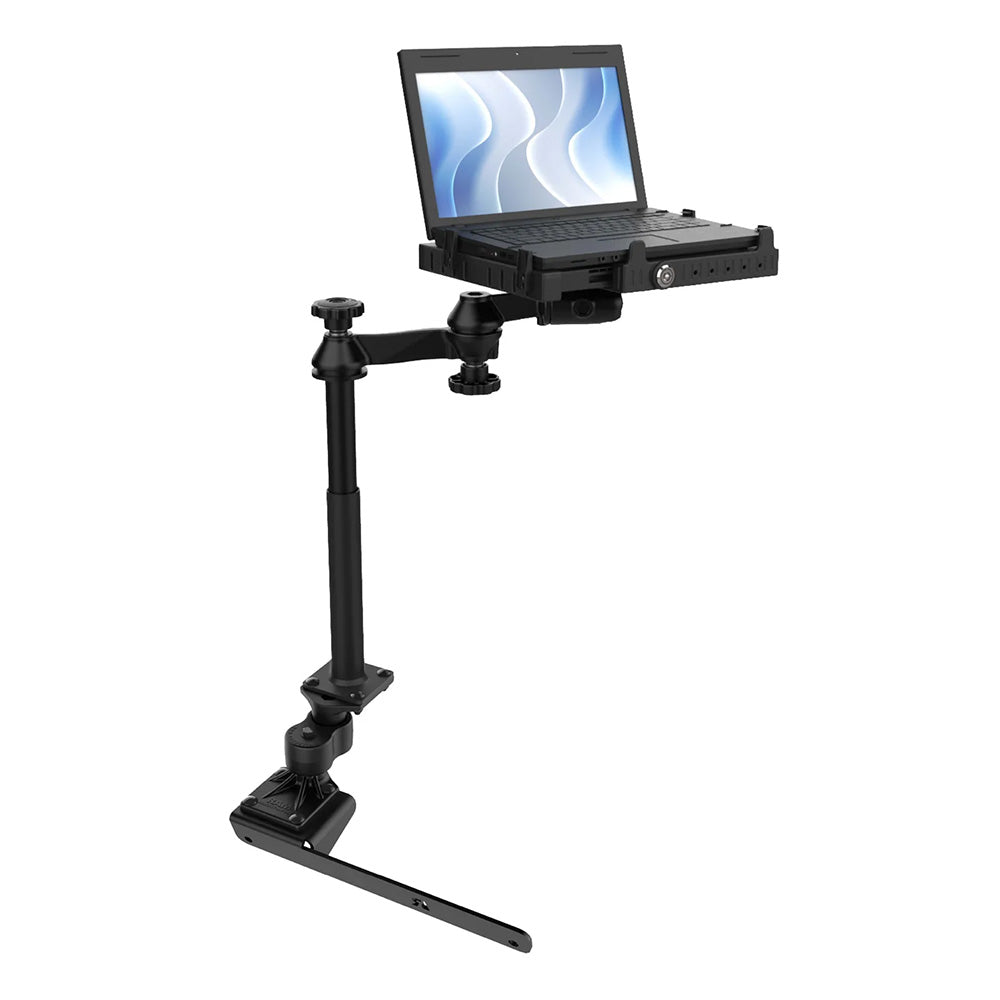

The RAM® No-Drill™ Laptop Mount for '12-26 Ram 2500 + More (RAM-VB-178A-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM® rubber ball-and-socket technology provides additional adjustability and shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally).

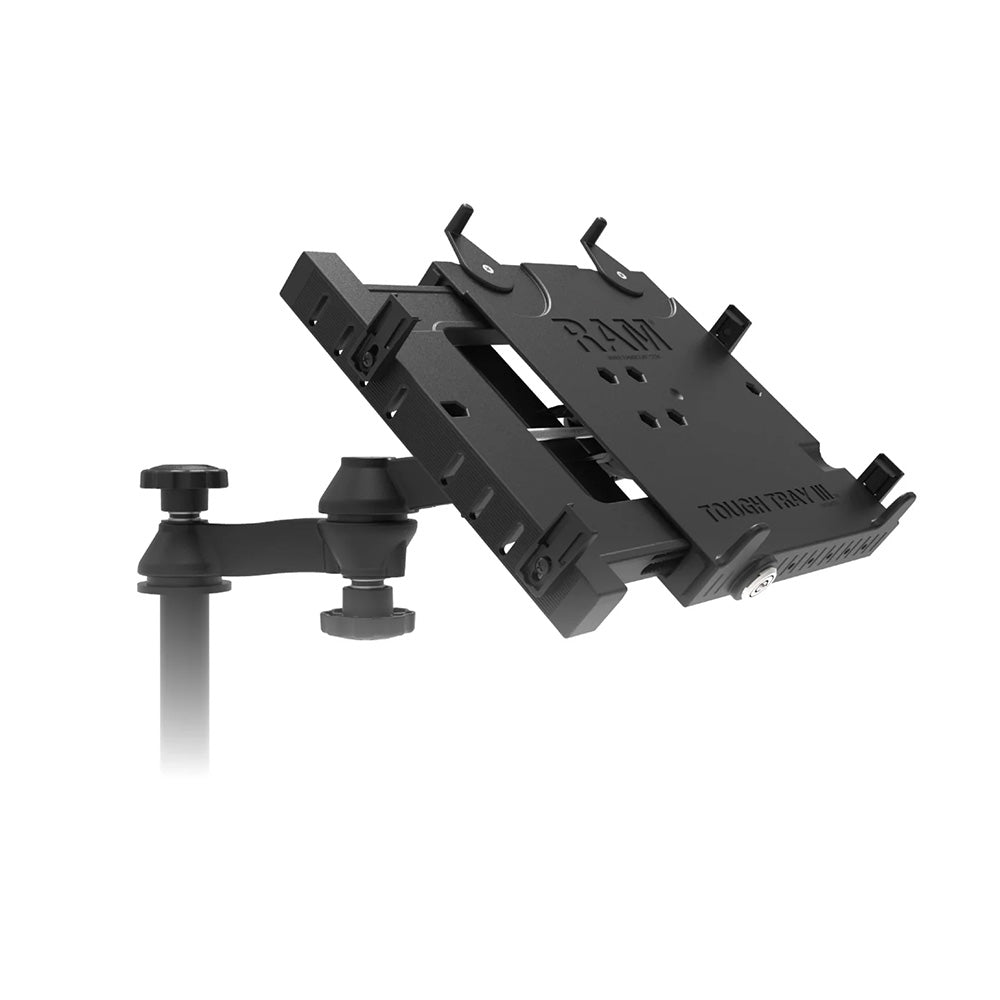

The tray features four adjustable retaining arms with grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify the full range of vehicle compatibility on the tab above.

Features:

• Custom laptop vehicle mount installs using passenger seat bolts; no drilling required
• Dual articulating swing arm provides a high level of adjustability
• Universal laptop tray accommodates most laptops
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

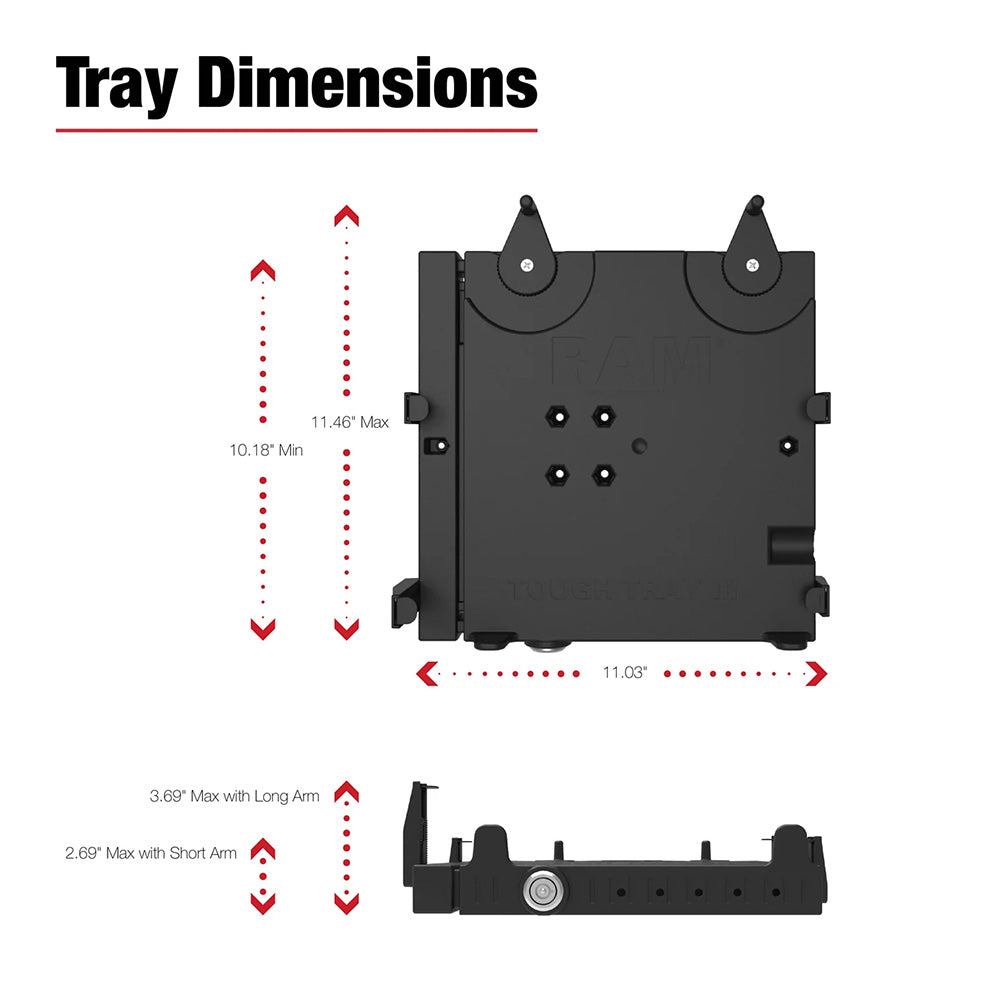

Tray Dimensions:

• Width Range: 10" - 15.25"
• Side Arm Clamp Height: 0" - 1.875"
• Depth Range: 7.625" - 10.625"
• Tray Thickness: 1.26"

Hole Pattern:

• Seat Bolt Distance: 13.25" center to center

Ball Size:

• C Size (1.5")

Compatible Vehicles:

RAM

• 1500 (2012-2018)
• 1500 Classic (2019-2024)
• 2500 - 5500 (2012-2025)

Additonal Information:

Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)
